Score Knife Holders
654927 & 654928

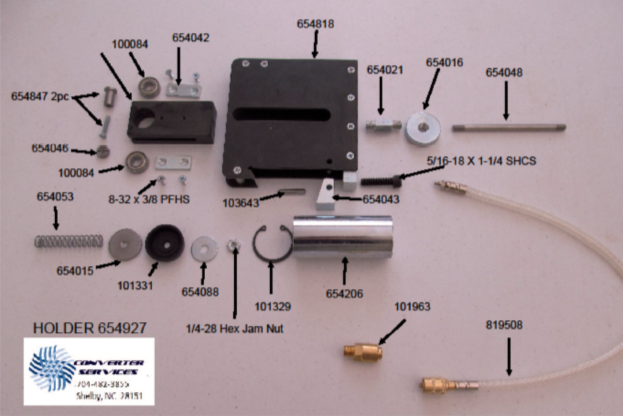

An assortment of mechanical and electronic components laid out on a flat surface, including motors, screws, nuts, adapters, and connectors, with labels and a Couter Services sticker.

1” Wide Holder, 1-1/2” cylinder, direct connected.

654927 has a short coupling pushrod, while the 654928 has a long coupling pushrod

Complete with:

  • #229139 4” Knife

  • #654847 Axle

  • #654046 Axle Nut

  • #100084 Bearing (2)

The model 654927 and 654928 are both 1” wide and utilize direct connected cylinders with rigid push rods. By use of long and short push rods they may be stacked to slit 1” wide. These models use a 229139 4” diameter knife, which makes them suitable for cutting materials up to 1” in thickness. These holders are designed with two ball bearings on the axle which allows high speed operation of the knife. The knife does not come into contact with the side plates, thus eliminating wear and overheating issues.

*Note that in the diagram shown of the 654927, the yoke (P/N 654048) showed is the short version, for a 654928, the part number for the longer yoke would be 654051*
