Score Cut Knife Holder

654831 & 654831-C

Disassembled mechanical or electronic component with various metal, plastic, and rubber parts, labeled with part numbers. Includes a black housing, screws, springs, fittings, a flexible cable, and a sticker from Converter Services.

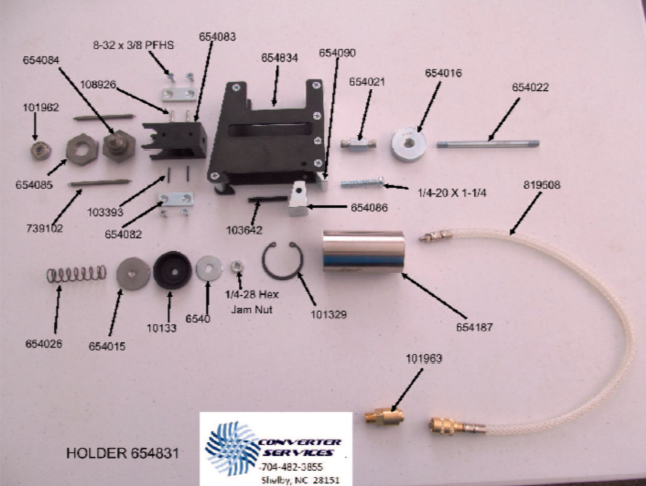

654831

1-1/2” Wide Holder, with a 1-1/2” diameter cylinder, double bearings for high speed operation. This holder is direct connected.

complete with:

#229002 Knife

#654084 Axle

#654085 Axle Nut

#101962 Bearing (2)

The model 654831 is 1-1/2” wide with a direct connected 1-1/2” cylinder and a rigid push rod. This model makes use of the 229002 knife and is designed with two ball bearings on the axle, which allows the knife to operate at high speeds. The knife does not come into contact with the die plates, thus eliminating typical wear and heating issues.

An exploded view of a mechanical or electronic component assembly with labeled parts, including bolts, brackets, a motor, a fiber optic cable, and other small components, along with a business card from Converter Services in Shelby, North Carolina.

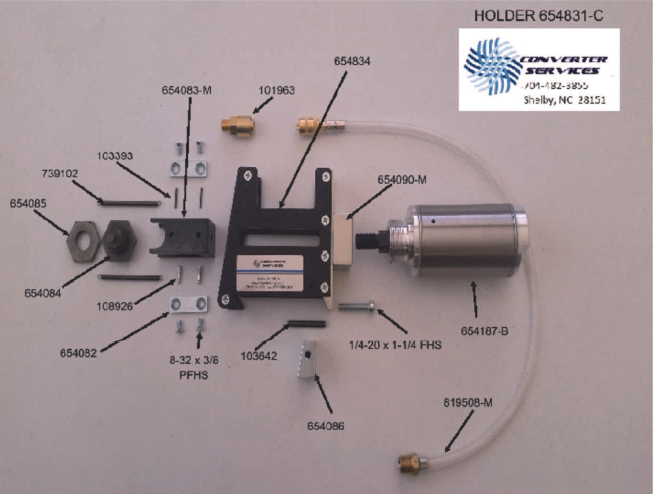

654831-C

1-1/2” Wide Holder, with a 2” diameter cylinder for high pressure applications, and double bearings for high speed operation. This holder is direct connected.

complete with:

#229002 Knife

#654084 Axle

#654085 Axle Nut

#101962 Bearing (2)

This is the high pressure version of the 654831 knife holder. This model will produce over 200 pounds of cutting force and will work well on difficult to cut materials including coated abrasives, textiles, and rubber.
