Score Cut Knife Holder 1755A

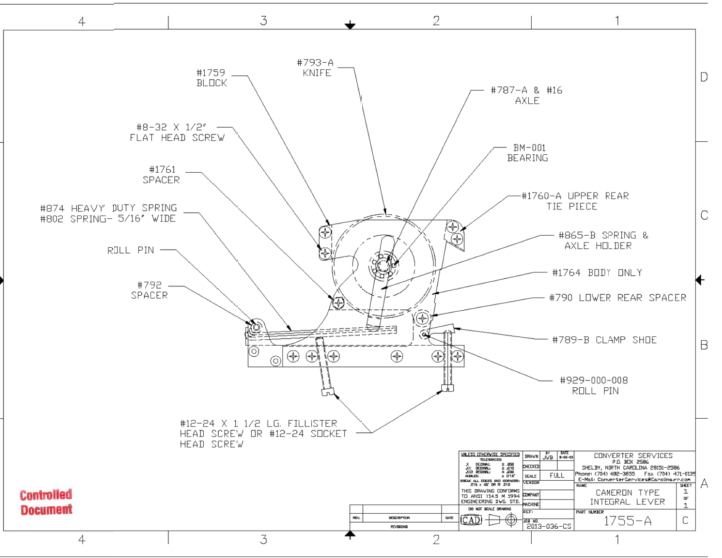

Technical blueprint of a mechanical assembly with labeled parts such as block, knife, axle, bearing, tie piece, body, spacer, clamp shoe, and roll pin.

The 1755A (Cameron Type) knife holder utilizes mechaniocal force rather than pneumatic pressure. This holder uses an integral lever system to be used in conjunction with a dovetail bar, and is easily adjustable for slitting various widths.
